Medical Disposable Products

IV Cannula With Wings and With Port
The General Features of our I.V. Cannula are:
  • Catheter is made from Medical Grade Virgin PTFE (Teflon is of Internationally accepted high quality.
  • PTFE Tubing-The Most Bio- Compatible Material, with longer indwelling time.
  • PTFE has lowest co-efficient of friction, thereby smoothening the insertion.
  • Injection port with silicon valve for intermittent medication.
  • Sharp 3 facet bevel with back cut Japanese needle.
  • Colour coded cap for easy gauge identification.
  • Sharp 3 facet bevel with back cut Japanese needle to reduce the penetration force.
Gauge Specifications
Colour Code Gauge OD m.m. Length Flow Rate ml/min.
Orange 14G 2.10 45 290
Medium Grey 16G 1.70 45 176
White 17G 1.50 45 130
Deep Green 18G 1.30 45 76
Pink 20G 1.00 33 54
Deep Blue 22G 0.85 25 31
Yellow 24G 0.70 19 14
Violet 26G 0.60 19 13
IV Cannula With Wings and Without Port
IV Cannula with wings without port for infants with a detachable collar on the wings which provides support and facilitates the easy insertion into an infants body. The collar can then be removed thus making the Cannula flat for fixing on the body and avoids any interference with the body or accidental removal of Cannula when the baby moves.

Our I.V. Cannula Range has Needle cover to protect the needle from accidental damage or punctures. Hub Cover i.e., the flashback chamber has high visibility indicating perfect and successful veni-puncture with blood entry. Needles Hub has a holding area precisely designed for placement of thumb.

Leur Lock also called stopper used to plug the cannula to prevents any seepage of blood due to back flow, when cannula is not in use. Easy to peel off system to remove form skin blister pack.
Gauge Specifications
Colour Code Gauge OD m.m. Length Flow Rate ml/min.
Yellow 24G 0.70 19 14
Violet 26G 0.60 19 13
IV Cannula Without Wings and Without Port
IV Cannula without wing without port can be used for simple procedures where injection of medicine is not required during infusion.

Our I.V. Cannula Range has Needle cover to protect the needle from accidental damage or punctures. Hub Cover i.e., the flashback chamber has high visibility indicating perfect and successful veni-puncture with blood entry. Needles Hub has a holding area precisely designed for placement of thumb. Leur Lock also called stopper used to plug the cannula to prevents any seepage of blood due to back flow, when cannula is not in use. Easy to peel off system to remove form skin blister pack.

Sterilzation is done with Ethylene Oxide gas.
Gauge Specifications
Colour Code Gauge OD m.m. Length Flow Rate ml/min.
Orange 14G 2.10 45 290
Medium Grey 16G 1.70 45 176
White 17G 1.50 45 130
Deep Green 18G 1.30 45 76
Pink 20G 1.00 33 54
Deep Blue 22G 0.85 25 31
Yellow 24G 0.70 19 14
Violet 26G 0.60 19 13
3 Way Stop Cock
Specification

For pressures up to 4.5 bar (65 psi).

360° rotation

Used for accurate drug administration.

Arrows on the handle to indicate the direction of flow Rotating male luer and two female luer connectors.

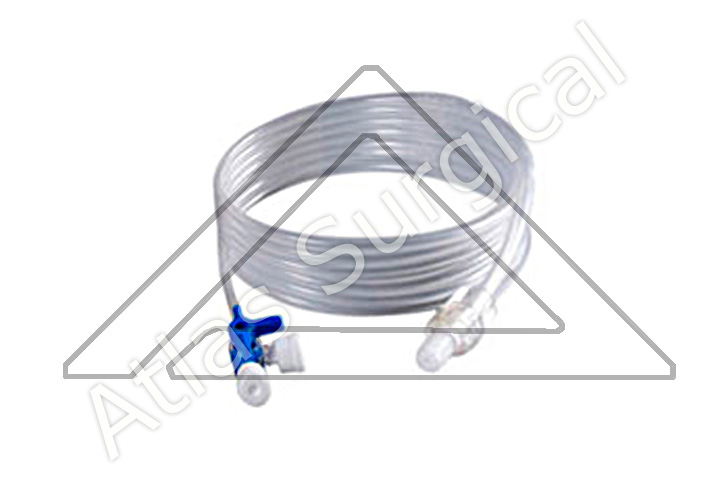

Three Way Stop Cock With Extension Tube
Specification

Extension line with three way stop cock at one end & male luer lock connector at other end Soft, frosted & kink resistant PVC

tubing.

External Dia. : 4.1mm.

Internal Dia. : 3.0mm.

Length : 10, 100, 150 & 200cm.

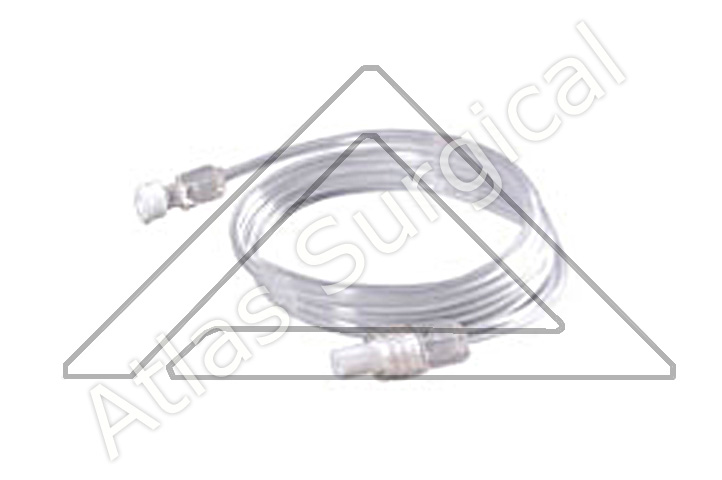

Pressure Monitoring Line
Specification

Made of clear, non-toxic PVC Highly kink resistant tubing. Facilitates optimum dynamic response.

Connector: female, male

Various length is available.

Latex Free, Sterile, non-pyrogenic.

External Dia. : 2.80mm.

Internal Dia. : 1.27mm.

Length : 10, 100, 150 & 200cm.
